When Squarebody Meets One-Ton: The Beast That Conquered Barnwell

Some trucks just have that look - you know the one. They sit there in the driveway, all squared-off and purposeful, like they’re waiting for something to climb over. This 1977 Chevy Suburban is exactly that kind of rig, and after watching it tackle the gnarly trails at Barnwell Mountain, it’s clear this squarebody isn’t just for show.

The owner calls it “The Beast,” and that nickname stuck back in 2000 for good reason. This isn’t your typical grocery-getter Suburban that got lifted on a weekend. This is a proper one-ton build that’s been methodically developed over fifteen years into something that can daily drive to work and then crawl up ledges that would make a billy goat nervous.

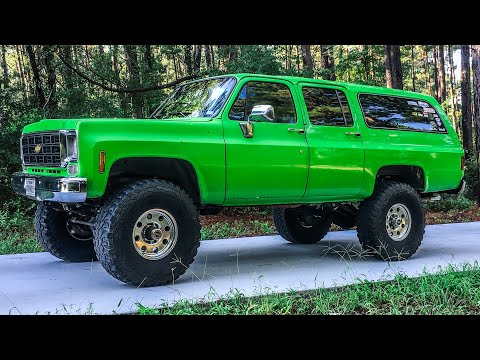

What makes this build special isn’t just the 40-inch Pro Comp Xtreme MT2s wrapped around those classic American Racing Baja wheels. Sure, those meats are impressive, but the real magic happens underneath. The owner swapped in a Dana 60 front axle from a late-80s one-ton with 5.38 gears and a full spool, paired with a 14-bolt full-float rear running the same 5.38 ratio with a Detroit locker. That’s serious axle hardware that can handle whatever abuse those 40s can dish out.

The powertrain is equally serious business. That 400 small block got bored .060 over and breathes through Edelbrock Performer intake and a Holley 750. Behind it sits a 700R4 transmission that feeds power to an NP 203 transfer case that’s been converted from full-time to part-time with a Mile Marker kit. The owner mentions how much torque this combo makes - enough to spin all four 35s back in the day when the truck wore smaller rubber.

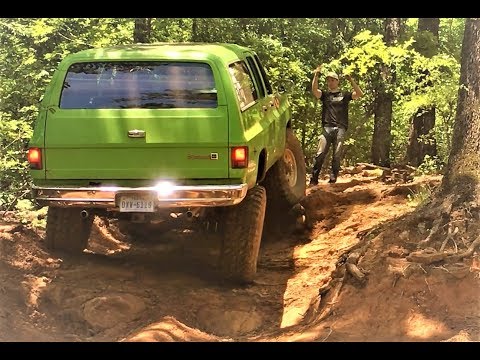

Watching this Suburban work the LB Turnpike trail at Barnwell Mountain shows exactly what proper gearing and traction can accomplish. The way it methodically climbs that ledge section demonstrates the beauty of having 5.38s turning those 40s. No drama, no wheel spin - just steady forward progress that makes difficult terrain look almost easy. The long wheelbase that might seem like a disadvantage on tight trails actually helps here, bridging obstacles and keeping the approach and departure angles manageable.

The suspension setup keeps things simple but effective. A four-inch Skyjacker all-spring lift provides the clearance needed for those 40s while maintaining decent ride quality for daily driving duties. The owner added a one-inch Off Road Design body lift to help with tire clearance, and those greasable bolts on the front suspension make maintenance straightforward. Off Road Design sway bar disconnects help with articulation when the going gets technical.

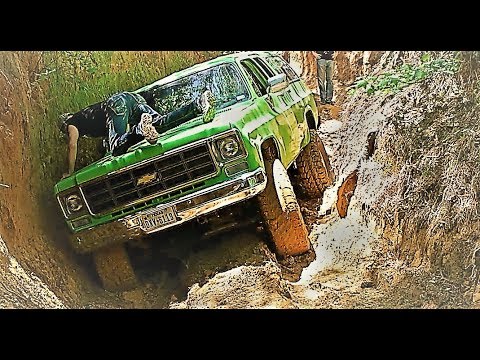

That second video from Barnwell shows the Suburban tackling the “Whatever” trail’s alternate exit, and you can see how the Detroit locker in the rear keeps both tires pulling even when traction gets sketchy. The truck nearly gets hung up on that steep, loose section, but the combination of torque, gearing, and traction pulls it through. These are the moments where all that careful drivetrain selection pays off.

The attention to detail extends beyond just the major components. Extended brake lines accommodate the lift, while custom shock mounts allow for longer shocks and better suspension travel. The exhaust runs straight back instead of exiting at 90 degrees to prevent hang-ups on rocks. Even the u-bolt flip kit on the 14-bolt keeps the hardware from catching on obstacles.

What really sets this build apart is how it balances capability with practicality. This isn’t a trailer queen that only sees dirt on weekends. The owner daily drives this thing on those 40s, which speaks volumes about the build quality and attention to detail. The fact that it’s been in the family for fifteen years and will eventually pass to the next generation shows the kind of connection you develop with a properly built rig.

The squarebody Suburban generation ran from 1973 to 1991, making it the longest-running Suburban design in GM’s history. These trucks were built when steel was thick and designs were simple, which makes them perfect candidates for serious off-road builds. The one-ton chassis provides the heavy-duty axles and suspension components that can handle big tires and hard use.

Looking at this Beast, you can see why squarebody builds have become so popular in the off-road community. They’ve got the classic looks, the robust chassis, and the simplicity that makes modifications straightforward. When you combine that foundation with modern drivetrain components and proper engineering, you get something that can handle serious trails while still being civilized enough for daily use.

The owner mentions plans for hydraulic assist steering and rock sliders, which will make this already capable rig even better. With the spool in the front Dana 60, power steering becomes almost mandatory for anything approaching street manners. Those planned rock sliders will protect that restored sheetmetal when the trails get tight and rocky.

This 1977 Suburban proves that sometimes the best builds are the ones that evolve slowly over time. Fifteen years of steady improvements, careful component selection, and real-world testing have created something that’s greater than the sum of its parts. It’s a truck that can crawl Barnwell’s technical trails and then drive home on the highway without missing a beat. That’s the kind of versatility that makes a build truly special.
