From Half-Finished Headache to Off-Road Hero - See This 4Runner Become a Beast!

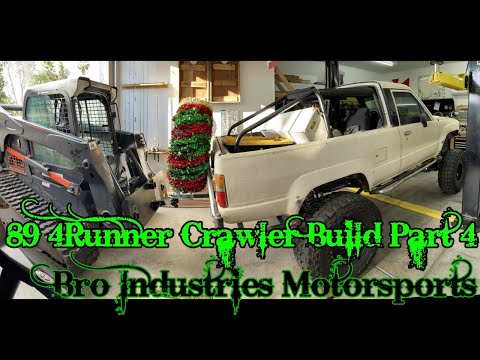

When most people think about building a serious rock crawler, they picture starting with a bone-stock rig and transforming it from the ground up. But sometimes the most interesting builds come to you half-finished, with someone else’s vision partially realized and a whole mess of problems to sort out. That’s exactly what rolled into Bro Industries Motorsports on their tilt-deck trailer - an ‘89 Toyota 4Runner that had potential written all over it, but needed some serious TLC to reach its full capability.

The 4Runner showed up with the heavy lifting already done in some areas. It had a solid axle swap front and rear, King coilovers, a four-link rear suspension, and a three-link front setup. Under the hood sat a Lexus V8 instead of the original Toyota four-banger, which meant this thing had the potential to move some serious weight when everything was dialed in properly. But like a lot of project builds that change hands, the devil was in the details.

The crew at Bro Industries quickly identified the main issues holding this crawler back. The shock geometry was all wrong, with coilovers leaning at weird angles and clearance problems everywhere you looked. The steering shaft was getting kissed by suspension components during articulation, which is never a good sign. The four-link geometry needed tweaking, and the whole rig had that “almost right but not quite” feel that drives any serious fabricator crazy.

Rather than band-aid the problems, they decided to address everything properly. The shock hoops came off completely so they could be repositioned and rebuilt. The frame got the full treatment with diamond plate armor welded from bumper to bumper, complete with rosette welds for maximum strength. Every mounting point was checked, reinforced, or completely redone depending on what the suspension geometry demanded.

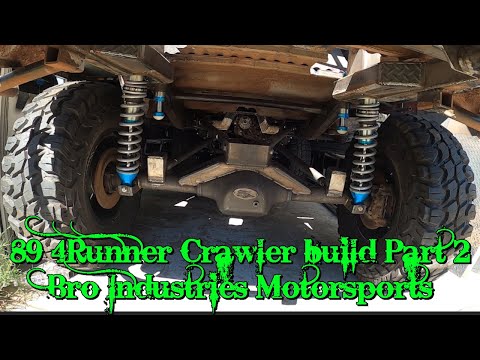

The real magic started happening when they moved to the rear suspension. Those King hydraulic bump stops got mounted properly through the frame, with custom landing pads welded to the axle housing so everything would cycle smoothly. The anti-rock sway bar installation was textbook - they dropped the suspension to full bump, marked their mounting points, and made sure every component had proper clearance through the entire range of motion.

Rock sliders went on next, and these weren’t some bolt-on aftermarket pieces. The ATP sliders that came with the truck were solid, but they needed custom fitting to work with all the frame plating and four-link brackets. The crew trimmed, fitted, and welded everything in place with the kind of attention to detail that separates a professional build from a weekend warrior hack job.

Front suspension work brought its own challenges. The three-link setup with track bar needed repositioning to clear the oil pan during articulation. The hydraulic bump stops required custom mounting through the frame rails, and the whole front end needed to be cycled repeatedly to ensure nothing would bind up or contact during extreme articulation.

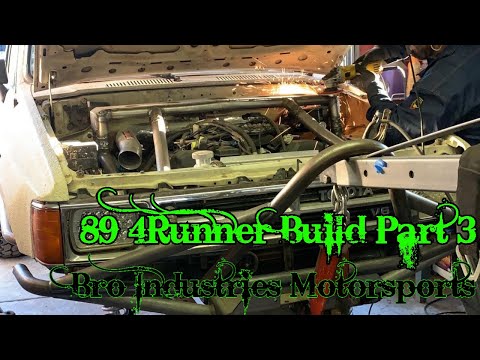

The engine cage work really showcased the fabrication skills at Bro Industries. Instead of just throwing some tubing over the motor and calling it good, they built a proper cage that tied into the shock hoops and ran through the grille to the front bumper. Everything was designed to be removable with bolt-on bungs, so future service work wouldn’t require cutting torches and welding equipment.

One of the coolest details was the attention paid to serviceability throughout the build. The transmission crossmember was converted to a bolt-in piece using weld-in bungs, so any future drivetrain work could be done without major disassembly. The reservoir mounts for the King shocks were positioned for easy access to the adjustment knobs. Even the engine cage bars could be removed if needed for major engine work.

The final phase brought everything together with the kind of finishing touches that separate a true professional build from something cobbled together in a backyard. The swinging spare tire carrier on the rear bumper used heavy-duty bearings and a robust latch system that could handle the abuse of serious trail work. The full hydraulic PSC steering setup with TMR mount kit meant this rig would have the steering authority needed to turn those big meats at low speeds on technical terrain.

By the time this 4Runner rolled out of the shop, it had been transformed from a promising but problematic project into a purpose-built rock crawler that could handle anything the trails could throw at it. The Lexus V8 provided the power, the King suspension gave it the articulation and control, and the custom fabrication work ensured everything would work together reliably for years of hard use.

This build perfectly demonstrates why taking on someone else’s unfinished project can actually result in a better end product than starting from scratch. The Bro Industries crew had the experience to identify what was working and what needed to be scrapped, then execute the fixes with the kind of precision that only comes from years of building serious off-road machines. The end result was a crawler that looked like it rolled off a professional race team’s trailer, because essentially that’s exactly what it was.
