From Rusty Relic to Rock Crawling Beast - The $20K Toyota Transformation

Building a serious rock crawler takes dedication, skill, and a clear vision of what you want to accomplish on the trail. Wreak Havoc Off-Road knows this better than most, and his $20,000 Toyota build proves that sometimes the best rigs are the ones crafted in your own garage rather than purchased off a dealer lot.

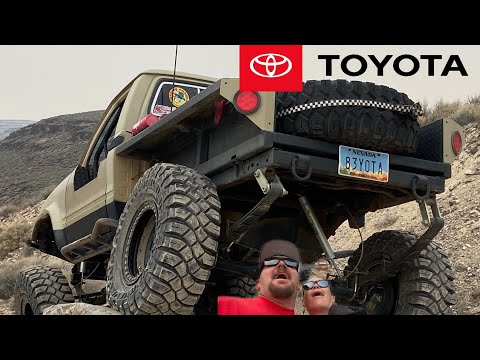

This 1983 Toyota pickup represents everything that makes Toyota builds special in the off-road community. Unlike many modern rigs where you can bolt on expensive parts and call it a day, this truck showcases the custom fabrication skills that separate weekend warriors from serious wheelers. The owner makes an excellent point about Toyota culture - when you see one of these rigs on the trail, chances are the driver either built it themselves or bought it from someone who poured their heart into every weld and modification.

The transformation from a beaten-up pickup to a capable rock crawler demonstrates what happens when you combine vision with fabrication skills. The original bed was pretty rough, showing typical rust issues that plague older trucks. Rather than trying to restore it or simply bobbing the frame, the builder went with a custom flatbed design that serves multiple purposes. The flatbed keeps the wheelbase as short as possible while providing a platform sturdy enough to handle the impacts that come with serious rock crawling.

Starting with the front end, this rig runs a Trail Gear bumper that required custom bracket modifications to mount properly. The 10,000-pound Smittybilt winch provides the pulling power needed for self-recovery situations, while LED headlights cut through darkness during night runs. The 4" Trail Gear lift kit includes high steer and hydra assist, giving the driver better control when navigating technical terrain at crawling speeds.

The axle setup tells the real story of this build’s capability. Both front and rear differentials run 5.29 gears with RCV axle shafts, providing the low-end torque multiplication needed for technical climbs while maintaining strength under stress. The rear axle features a spool for maximum traction, though this setup trades street manners for trail performance. Full diff covers from Marlin Crawler protect the ring and pinion from rock damage during aggressive approaches.

One of the most interesting aspects of this build is the dual transfer case setup. The Trail Gear dual transfer case cross member not only supports the additional weight but also provides crucial ground clearance improvements. The builder gained about two inches of clearance by switching to this cross member design, resulting in 26" of belly clearance and 14" under the axles when running 37s.

The transmission swap to a W56 from a 1991 Toyota pickup makes perfect sense for this application. Manual transmissions give rock crawlers the precise control needed for technical sections where automatic transmissions might hunt between gears or create unwanted wheel spin. Combined with the dual transfer cases, this drivetrain setup provides an incredibly wide range of gear ratios for everything from highway cruising to near-walking-pace rock crawling.

Rolling on 37" Maxxis Creepy Crawler tires mounted to 17" Allied RT51 beadlock wheels, this rig has the contact patch and sidewall strength needed for low-pressure trail running. The beadlocks prevent tire separation during extreme side-loading situations that would leave regular wheels and tires stranded on the trail.

The custom flatbed design is about practical trail experience rather than show-truck aesthetics. It houses a full size spare tire, 10 lb Power Tank for airing up and down, a locking job box for tools and fluids, and still leaves room for a small cooler. The Power Tank setup is particularly good idea - it provides air for tire pressure adjustments and can run air tools for trail repairs without relying on engine-driven compressors that don’t work when the engine is off.

Interior modifications focus on function over form. The full cage provides essential protection during potential rollovers, while Corbeau XRS seats keep occupants secure during aggressive articulation. The 0.50 cal ammo can serving as a center console provides secure storage for maps, tire deflators, and other small essentials. The custom switch panel keeps electrical controls organized and accessible, while the CB radio maintains communication with other wheelers on group runs.

The half doors represent another example of thoughtful custom fabrication. Built in-garage rather than purchased, they feature Hydro-Turf material on the upper sections to keep the metal cool during summer wheeling sessions. Diamond plate lower sections provide durability, while custom latching systems ensure they stay closed during extreme articulation. The three-inch exhaust pipe repurposed as a cup holder shows the kind of creative problem-solving that defines good trail builds.

What makes this build particularly impressive is the $20,000 total investment. While that might sound like serious money to some, it represents exceptional value when you consider the custom fabrication work, quality components, and proven trail performance. Many bolt-on builds exceed this budget without achieving the same level of capability or reliability.

The builder’s advice to “build what you want to build from the get-go” reflects hard-earned wisdom. Too many projects start with compromises or temporary solutions that end up costing more time and money down the road. This Toyota demonstrates what happens when you have a clear vision and the skills to execute it properly.
