How a Solid Axle Swap Took This 2006 2500 HD Duramax to the Next Level

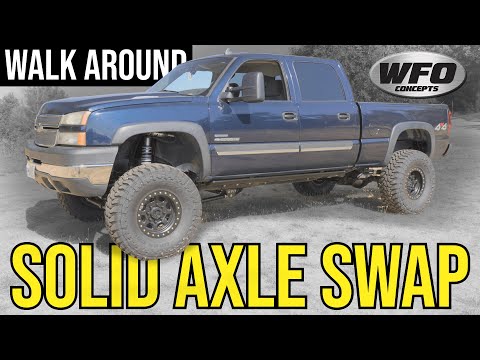

Shane’s 2006 Chevy 2500 HD Duramax rolled into WFO Concepts with a worn-out IFS lift kit and left as something completely different. This LBZ-powered beast got the full solid axle swap treatment, and the results speak for themselves. Sometimes you just know when a truck deserves more than a simple repair job.

The heart of this build centers around WFO’s 6-inch solid axle swap kit paired with a 2005-plus Super Duty axle. Shane’s truck now sits on 37-inch Toyo tires wrapped around 17-inch Trail Ready simulated beadlock wheels, giving it that perfect stance between capability and street manners. The crew at WFO didn’t just slap parts together either - they fully rebuilt the front axle with some serious upgrades.

Inside that rebuilt front axle sits 4.30 gearing, 1550 axle shaft upgrades, and an ARB air locker for when traction gets sketchy. The heavy-duty two-inch quarter-wall tie rod handles steering duties while a Fox stabilizer keeps things smooth on the highway. WFO even added a steering box brace because when you’re running 37s, every little bit of strength helps.

The Fox shock package really sets this build apart from your typical solid axle swap. Up front, Fox 2.5-inch coilovers with external reservoirs handle the heavy lifting. These run a single-rate setup with 400-pound springs, but here’s the clever part - the slider actually touches the double mount adjusters, making the upper spring act as a tender. No squeaking, no noise, just smooth operation whether you’re crawling rocks or cruising the interstate.

Finding room for the air compressor on these Duramax trucks takes some creativity. The engine bay doesn’t offer much real estate, so WFO mounted the compressor right on the AC bracket. Even better, they plumbed air lines to the rear bumper so you can fill tires or run air tools without popping the hood every time. Smart thinking for a truck that’s actually going to get used.

The wheel well clearance required some trimming around the inner fender near the washer bottle and front bumper modifications. Shane’s probably looking at a half-ton washer bottle swap down the road to free up even more space, but right now everything clears with the current wheel offset.

Here’s where this build gets really interesting - Shane decided to upgrade the transfer case while they had everything apart. His 263 transfer case had the classic pump rub problem that plagues these units. When they pulled it out, zero oil remained inside. Instead of fixing the old case, they went with a 273 transfer case from Transfer Case Express.

The 273 swap makes perfect sense for this application. Unlike the 263’s slip yoke setup that can leak and limits driveline options, the 273 features fixed yokes front and rear. This means 1410 joints in the rear driveshaft and 1350 CV joints up front, with the slip joint moved into the driveshaft itself where it belongs. The front driveshaft runs almost perfectly flat with the 6-inch lift, eliminating problematic angles that cause vibration and premature wear.

Out back, WFO installed their shackle flip kit with 6-inch shackles and performed the u-bolt flip with their custom plates. They offset the axle back an inch before ordering the new driveline, centering the tires perfectly in the wheel wells. A 6-degree shim corrected the pinion angle that gets affected when you flip the shackles. Fox 2.0 shocks handle the rear suspension duties.

The exhaust required modification too - something people forget about when doing shackle flips. The leaf spring’s new position meant cutting and rerouting the tailpipe with mandrel bends to clear everything properly. It’s one of those details that adds a few hundred bucks to the project but has to be done right.

WFO Concepts has built their reputation on builds like this one. They understand that solid axle swaps aren’t just about bolting on parts - they’re about creating a complete system that works together. From the air compressor placement to the transfer case upgrade to the exhaust modifications, every detail gets attention.

The LBZ Duramax makes an excellent platform for this type of build. The 2006-2007 engines are considered some of the most reliable in the Duramax lineup, and the power delivery works perfectly with the added capability of the solid axle setup. Shane’s truck proves that you can build something that works as well on the trail as it does on the street.

You can check out more builds like this one by following WFO Concepts online. Their website at wfoconcepts.com showcases their complete line of solid axle kits and suspension components. Follow them on social media too - Facebook at facebook.com/WFOconcepts, Instagram at instagram.com/wfoconcepts, and TikTok at tiktok.com/@wfoconcepts for behind-the-scenes content and build updates.

Shane’s Duramax represents what happens when you combine quality parts with experienced builders who understand the platform. Every modification serves a purpose, and the end result is a truck that’s ready for whatever comes next. Whether that’s a weekend trail run or a cross-country adventure, this LBZ is built to handle it all.
