Why the 'Iron Slug' FJ80 Is the Gold Standard for Off-Road Builds

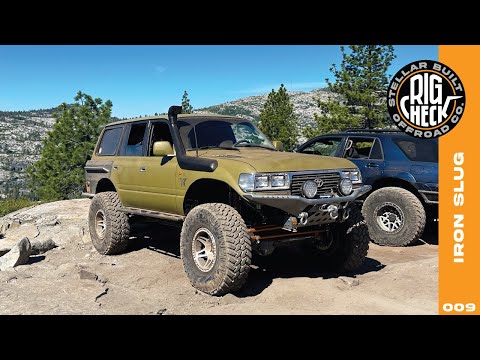

Jose’s FJ80 Land Cruiser has earned its nickname “Iron Slug” through twelve years of methodical upgrades and countless trail adventures. This 1996 Toyota represents everything that makes the 80-series platform legendary - bulletproof reliability wrapped in serious capability. When Jose first spotted this rig on National Geographic’s Arctic exploration footage, he knew he had to have one of these dark green beasts rolling on big rubber.

The transformation from stock grocery getter to trail dominator started in earnest around 2014 when Jose broke out the angle grinder and completely ditched the factory suspension. What emerged was one of the earliest Four Wheel Underground three-link setups ever built for the 80-series platform. The front end now sports a complete custom suspension with 14-inch Red Flow coilovers, Hellfire knuckles with high-steer, and a raised panhard bar setup that Stellar Built helped dial in perfectly.

The attention to detail on this axle work is incredible. Jose calls it his “poor man’s diamond axle” - still running the original Toyota housing but reinforced with a Ballistic front diff cover, custom angle iron protection, and a Low Range truss across the top. Those factory e-lockers get fed power through cryotreated Nitro Gear 5.29 gears, while PSC hydro assist keeps the steering manageable when those 38-inch Nitto Trail Grapplers are clawing over granite.

The rear suspension setup might be the most unique aspect of this entire build. Instead of going with a traditional four-link that would interfere with the fuel tank, Jose engineered a 3/4 triangulated setup using a wishbone upper link and extended triangulated lowers. This eliminates the need for a panhard bar while maintaining proper axle control. The coilovers hang behind the axle in a configuration that looks almost factory - if Toyota built their trucks for serious rock crawling.

Both axles run matching Nitro 5.29 gears with cryogenic treatment, and the rear sports RCV 300M axle shafts with modified flanges running bigger ARP bolts instead of those weak factory studs that love to shear. A custom Rough Stuff sway bar complements the front Anti-Rock setup, giving this heavy rig the articulation it needs without the body roll that plagues most loaded 80-series trucks.

The armor package reflects Jose’s evolution as a wheeler. Gone are the heavy swing-outs and external fuel cans - everything is now tucked high and tight. The 4x4 Labs high-clearance bumper is one of the early models with super-high wings that actually cover the turn signals. Custom rock sliders required cutting out the entire rocker panel cavity, gaining five inches of clearance while creating a straight 2x4 plank welded directly to the frame.

The rear quarter protection is completely one-off work from the now-defunct Metalcraft Innovations. These complex curved panels wrap around the rear quarters and protect the tail lights - something Jose got tired of replacing after tree encounters. Combined with the custom rear bumper that’s basically two 2x6 planks welded permanently to the frame, this truck can take a serious beating.

Inside, the attention to detail continues with completely rebuilt OEM seats reupholstered in dark chocolate brown leather with orange contrast stitching. The HVAC controls have been completely refurbished with new buttons and amber backlighting. A Wits End cubby insert houses switches for rock lights, chase lights, and auxiliary lighting, while overhead storage includes a custom 3D-printed console with altimeter, GPS coordinates, and vehicle pitch and roll display.

The cargo area stays purposefully simple with a National Luna 65-quart fridge on a DIY slider, 4x4 Labs fender basket holding a 5-gallon water tank and Extreme Air compressor, and a Backbay Customs tailgate storage panel that’s now sold through Delta. Solar panels mounted on the Bison Gear overhead rack keep everything charged during multi-day adventures.

Under the hood, the bulletproof 4.5-liter inline-six remains largely stock for maximum reliability. The major modifications include a Hell Roaring dual battery backup system, ABS delete, and custom electrical distribution block feeding all the accessories. A 3.11 crawler gear in the transfer case combines with a part-time conversion to give this rig the low-speed control it needs on technical terrain.

At 187,000 miles, this Iron Slug proves that the 80-series platform can handle serious modification while maintaining daily driver reliability. Jose’s philosophy of driving to the trail, wheeling hard, and driving home in air-conditioned comfort represents the best of what these trucks can offer. The combination of thoughtful engineering, quality components, and meticulous execution creates a rig that’s equally at home crawling the Rubicon Trail or running errands around town.

This build showcases why the 80-series Land Cruiser remains the gold standard for serious four-wheeling. When you combine Toyota’s legendary reliability with proper suspension geometry, bulletproof axles, and thoughtful armor, you get a rig that can handle anything the trail throws at it. The Iron Slug isn’t just a show truck - it’s a testament to what’s possible when you combine vision, patience, and serious fabrication skills.

Thirsty for more of Jose’s rig? He’s got a massive, multi-year build thread on ih8mud.com. For more details on this build and other incredible rigs, check out Stellar Built at stellarbuilt.com.
