Why This Toyota Pickup Refuses to Die on the Trail

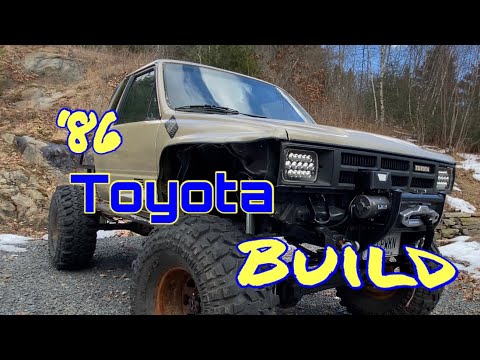

Building a rock crawler isn’t just about bolting on bigger tires and calling it a day. It’s about taking a beat-up truck and transforming it into something that can handle whatever the trail throws at it. HT_FAB knows this better than most, and his 1986 Toyota pickup build is proof that patience and proper planning can turn a rusty shell into a capable trail machine.

Starting with what he describes as a “regular 86 pickup 4x4 all rotted out and rusted,” this build represents the kind of dedication that separates weekend warriors from serious wheelers. The foundation of any solid rock crawler starts with the axles, and HT_FAB went straight to the heart of the matter with a Trail Gear IFS eliminator kit.

The front axle came from an ‘84 pickup, but it didn’t stay stock for long. Trust knuckle ball gussets reinforce the weak points that every Toyota wheeler knows about, while RCV chromoly axle shafts replace the factory pieces that would snap under the stress of 36" Super Swamper TSLs.

Gearing makes or breaks a build like this. Those 5.29 gears ensure the 22RE engine can actually turn those massive tires without lugging down to nothing. An ARB air locker in the front means traction on demand, while the onboard air system serves double duty - engaging the locker and airing up tires when it’s time to hit the pavement. The Warn M8000 winch mounted on a custom-fabricated mount keeps the front end clean without the bulk of a massive stinger bumper.

The attention to detail shows in the small touches. High steer arms improve steering geometry when running larger tires, while 12" Bilstein provide the travel needed for serious articulation. Custom rock sliders protect the rocker panels from trail damage, and cropped fenders prevent sheet metal from folding around the tires during flex.

What really sets this build apart from most clean west coast trucks is the frame work - there be rust in the northeast. Rather than just patching rust holes, the builder rebuilt the entire back half of the frame using box steel. Removing the old frame rails one at a time and transferring the mounting points to new material takes serious patience. He says it even still tracks straight down the road!

The rear suspension setup keeps things simple but effective. Chevy 63" leaf springs provide the capacity to handle the truck’s weight while offering good articulation. 14" Bilstein shocks in the rear work with Low Range Off-Road upper mounts to maximize travel. A welded rear differential - what old-school wheelers call a Lincoln locker - provides full-time traction without the expense of a selectable locker.

The custom tube flatbed isn’t just about looks. Removing the heavy factory bed and replacing it with a lightweight tube structure moves weight forward and reduces the overall load the drivetrain has to move. A Tom Woods driveshaft ensures power transfer without the vibration issues that plague cobbled-together setups.

Inside, the truck maintains its working-class Toyota roots. The five-speed manual transmission gives you complete control over engine braking on descents, while the 195,000 miles on the odometer prove these engines can handle serious use. The custom headliner and Rhino-lined floor show this is a truck built for use, not show.

Every serious wheeler knows that the best builds are the ones that get used. HT_FAB’s Toyota isn’t a trailer queen - it’s a working rock crawler that proves you don’t need to spend six figures to build something capable. Sometimes the best builds are the ones that look like they’ve been there and done that, because they have.
