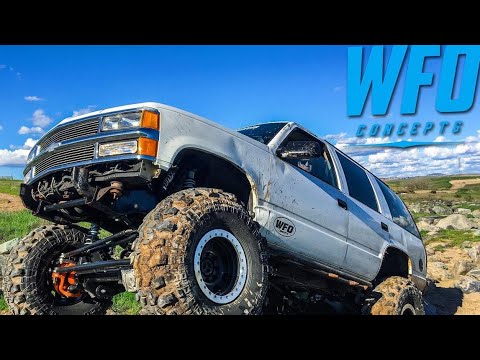

Why WFO Concepts' 650HP Tahoe Is the Coolest Family Rig on the Road

When Evan rolled up to WFO Concepts with his ‘97 Chevy Tahoe and said he wanted the strongest axles they make, Trevor and the crew knew they had a customer who understood the assignment. This isn’t your typical soccer mom hauler anymore - this beast packs a 540 cubic inch big block pushing 650 horses and riding on 42-inch TSL SX Swampers. Yeah, it’ll still get the kids to practice, but it’ll also smoke tires and conquer the Rubicon without breaking a sweat.

The heart of this build starts with that monster motor. WFO swapped the factory mill for a GM 502 block with a Scat 540 forged rotating assembly and Long Rod internals. Those Brodix heads and full roller setup feed into a Fast 2.0 fuel injection system that should put down around 650 horsepower and 800 foot-pounds of torque. That’s enough grunt to light up those 42s whenever Evan feels like putting on a tire show.

Behind all that power sits a bulletproof Monster Turbo 400 with a reverse manual valve body. No slipping, no hunting for gears - just pure mechanical connection between the throttle and those massive meats. The 4.3 Atlas transfer case splits that power between the axles with a proper 4:1 low range that’ll crawl over anything the trail throws at it.

The real engineering magic happens underneath where WFO mounted a 2005-and-up Ford Superduty front axle under the OBS Tahoe. This was their first time trying this combo, but the results speak for themselves. They stuffed RCV axle shafts and Reid Racing knuckles into that Dana 60, then backed it up with 4.88 gears and an Eaton E-locker for when traction gets sketchy.

That front suspension setup showcases WFO’s fabrication skills. Their custom three-piece crossmember bolts together but drops out for transmission work. The radius arm kit positions everything perfectly while those 12-inch Fox 2.5 coilovers with remote reservoirs and air bumps soak up the big hits. The crossover steering runs through a 2-inch quarter-wall DOM tie rod with PSC hydro assist - because when you’re pushing this much weight on 42s, you need all the steering help you can get.

Out back, the Sterling 10.5 rear end from the same Superduty donor handles the power delivery. WFO’s shackle flip kit works with 2-inch Deaver leaf springs to gain about 5 inches of lift while keeping the ride quality civilized. That torque arm setup prevents axle wrap when Evan decides to unleash all 800 foot-pounds on the pavement.

Those 42-inch TSL SX Swampers mounted on 17-inch Battleborn beadlocks complete the package. Super Swampers just make sense on a rig like this - they’ll hook up in the rocks, float over sand, and still roll down the highway without beating you to death.

The attention to detail extends inside where WFO built what they call the “party console.” This custom center console houses the Winter Performance reverse manual valve body shifter along with what they describe as an “Adult Beverage Station.” The ergonomics are dialed in with proper drain holes and room for koozies because apparently even serious off-road builds need to consider the post-wheeling camp setup.

WFO Concepts has been pushing the boundaries of what’s possible with these builds, and Evan’s Tahoe proves their approach works. This thing can legitimately handle soccer practice duty during the week, then charge up the Rubicon trail on weekends with the whole family inside. Hit Pismo for some dune running, tackle the mud pits at Hollister Hills, or cruise the snow-covered trails around Lake Tahoe - this Tahoe handles it all.

The combination of modern fuel injection, bulletproof drivetrain components, and proper suspension geometry creates something that’s both capable and reliable. That Fast EFI system means no more carburetor tuning headaches at elevation changes, while those RCV shafts and Reid knuckles can handle whatever abuse the trail dishes out.

WFO’s approach to this build shows what happens when you combine serious fabrication skills with a customer who’s willing to do things right. That three-piece crossmember design, the crossover steering setup, and the way they integrated that Superduty axle under the OBS body demonstrates real engineering thinking rather than just bolting parts together.

This Tahoe represents everything that makes the off-road community special - taking a family hauler and transforming it into something that can hang with purpose-built trail rigs while still serving daily driver duty. Evan wanted the strongest setup they make, and WFO delivered exactly that.
